Ripper shank

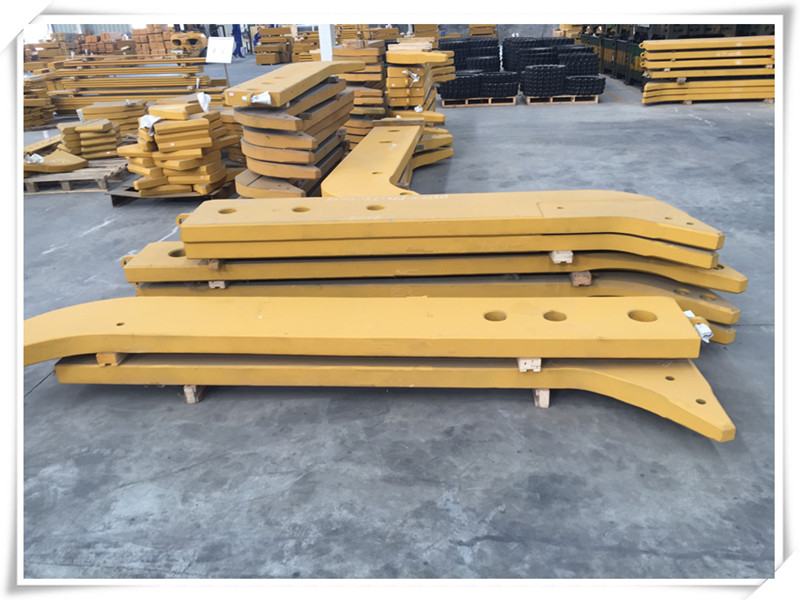

HONEST one-piece ripper shanks are forged to length, formed and fully machined. Forged from 35CrMo alloy steel and thru-hardened for strength and maximum wear life. HONEST offers a complete range of ripper shanks for main O.E.M. brands on the market, covering from the samllest ripper shanks 9J3139 up to the largest Caterpillar D11N ripper shank 104-9277, for the biggest dozers on the market.

FEATURES FOR THE RIPPER SHANKS FROM HONEST

(1) The best material 35CrMo steel was used.

Ripper shanks are cutting tools used to tear through layers of earth or overburden. The majority of the time, ripper shanks are used in

tandem with dozers in various configurations.. Hundreds of factors can impact the life cycle of ripper shanks, so it is important to start with a steel that has the ability to handle the most severe wear applications. 35CrMo was specifically engineered for the mining and earth moving industries, so it is ideal for these type of jobs.

(2)One-piece machine finished ripper shanks, without any welding avoiding the risk of breakage on the welded areas.

(3)High toughness:Ripper toughness is very high even under difficult conditions, such as high rates of strain combined with low temperatures thanks to the forging technology and most good steel in all our shanks.

(4)Excellent cold weather properties
The forging ripper Shank will outlast other ripper shanks by at least 25-35%. In cases where “breaking” has occurred, our forging ripper shanks has lasted three to four times as long as others. The high tensile strength, along with its ultra-fine grain structure, allows for a longer wear cycle. Due to its superior grade steel, the HONEST forging Ripper Shank allows for less downtime and increased production.







NO. DESCRIPTION OEM PART NO. MODAL BRAND WEIGHT HARDNESS
1 Ripper Shank 8E5347 D8N D8R Single shank Caterpillar 365 46~50 HRC
2 8E5346 D8N D8R Multiple shank 289 46~50 HRC
3 8E5340 D8N D8R Deep ripper shank 450 46~50 HRC
4 8E5342 D8L Single shank 345 46~50 HRC
5 8E5341 D8L Multiple shank 270 46~50 HRC
6 8E5340 D8L Deep ripper shank 450 46~50 HRC
7 1073485 D8K Single shank 510 46~50 HRC
8 8E5346 D8K Multiple shank 289 46~50 HRC
9 1073486 D8K Deep ripper shank 644 46~50 HRC
10 1144503 D9R Single shank 560 46~50 HRC
11 8E5346 D9R Multiple shank 289 46~50 HRC
12 1099114 D9R Deep ripper shank 680 46~50 HRC
13 8E5339 D9N Single shank 425 46~50 HRC
14 8E5346 D9N Multiple shank 289 46~50 HRC
15 8E5348 D9N Deep ripper shank 510 46~50 HRC
16 1073485 D9H Single shank 510 46~50 HRC
17 8E5345 D9H Multiple shank 318 46~50 HRC
18 1073486 D9H Deep ripper shank 644 46~50 HRC
19 8E8414 D9L Single shank 555 46~50 HRC
20 8E8415 D9L Multiple shank 435 46~50 HRC
21 8E8416 D9L Deep ripper shank 680 46~50 HRC
22 1182140 D10R D10T Single shank 745 46~50 HRC
23 8E8415 D10R D10T Multiple shank 435 46~50 HRC
24 1093135 D10R D10T Deep ripper shank 905 46~50 HRC
25 8E8411 D10N Single shank 638 46~50 HRC
26 8E8415 D10N Multiple shank 435 46~50 HRC
27 8E8417 D10N Deep ripper shank 764 46~50 HRC
28 8E8412 D10 Single shank 840 46~50 HRC
29 8E8413 D10 Multiple shank 580 46~50 HRC
30 1049277 D11N D11R Single shank 1043 46~50 HRC
31 8E8413 D11N D11R Multiple shank 580 46~50 HRC
32 1049275 D11N D11R Deep ripper shank 1240 46~50 HRC
33 144-78-11243 D65A-8 D65E-8 Komatsu 105 46~50 HRC
34 154-78-14349 D85 159 46~50 HRC
35 175-78-21615 D155A-2 285 46~50 HRC
36 175-79-32131 D155A-2 412 46~50 HRC
37 15A-79-11120 D155A-3 D155A-5  374 46~50 HRC
38 195-79-31141 D355 548 46~50 HRC
39 195-79-51151 D375 625 46~50 HRC
40 198-79-21320 D475 1052 46~50 HRC
41 10Y-84-50000 SD13 Shantui 54 46~50 HRC
42 16Y-84-30000 SD16 105 46~50 HRC
43 154-78-14348 SD22 Three Shank Ripper 156 46~50 HRC
44 175-78-21615 SD32 Three Shank Ripper 283 46~50 HRC
45 23Y-89-00100 SD22 206 46~50 HRC
46 24Y-89-30000 SD32 461 46~50 HRC
47 24Y-89-50000 SD32 466 46~50 HRC
48 31Y-89-07000 SD42 548 46~50 HRC
49 185-89-06000 SD52 576 46~50 HRC
50 1142-89-09000 SD90 1030 46~50 HRC
