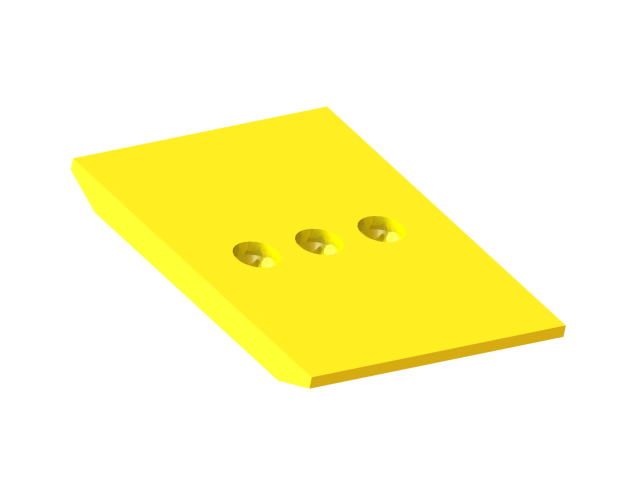

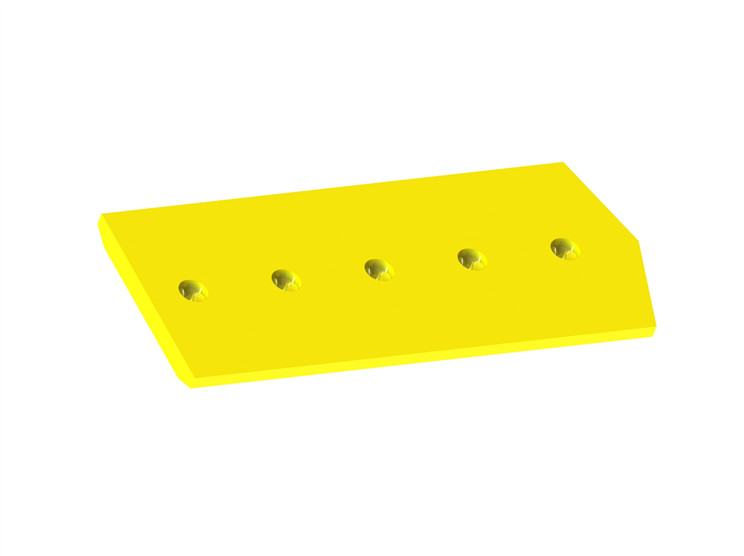

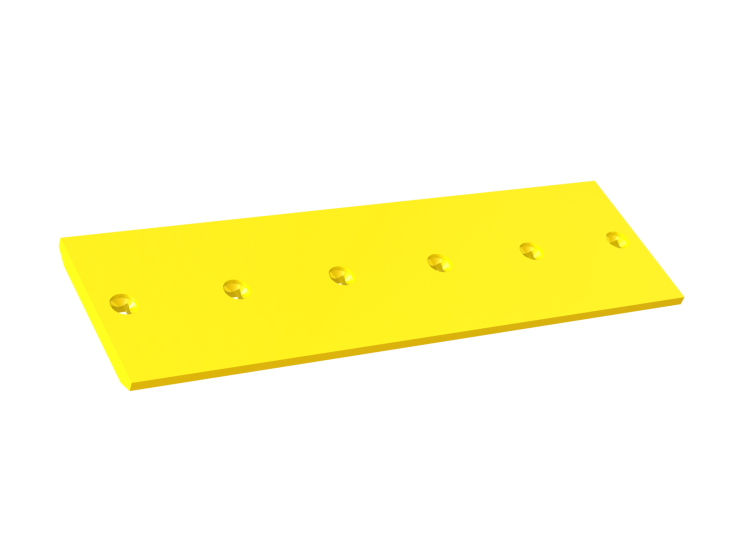

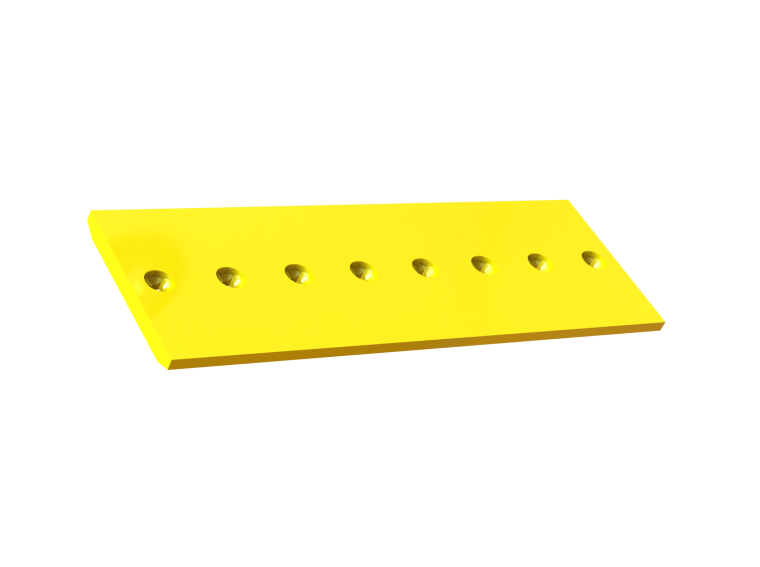

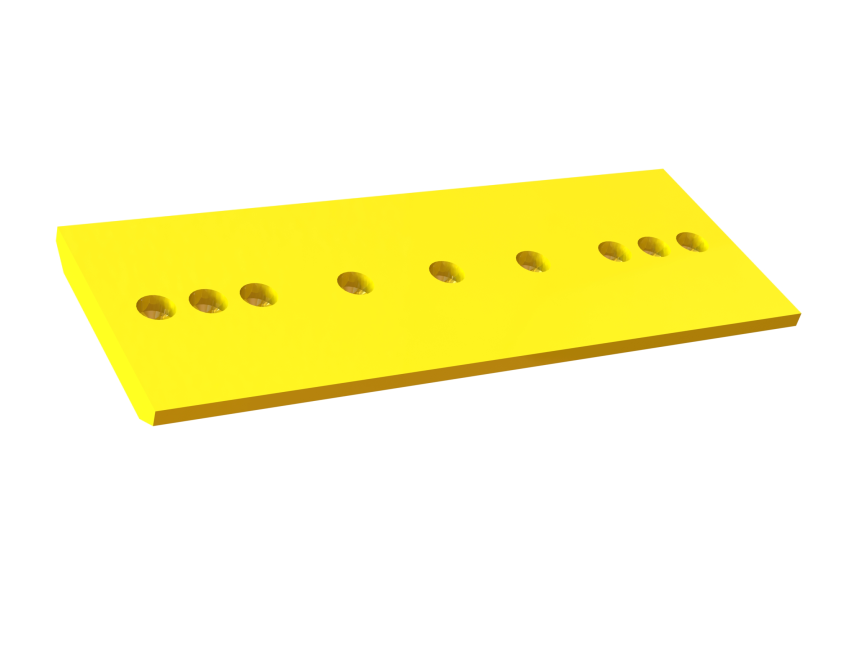

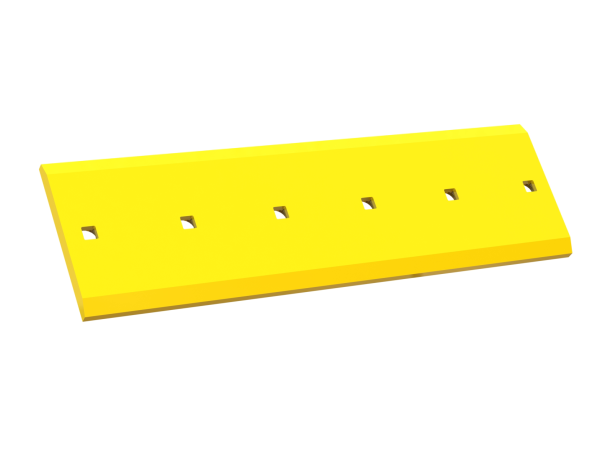

Brief Introduction Of Honest Cutting Edge

Weld in and Bolt on cutting edges and other wear componentry is available for all makes and models of Excavators, Bulldozers, Loaders, Scrapers, Graders and Compactors. We can fabricate any type of edge to best suit your requirements.HONEST dozer cutting edges and end bits are designed as a balanced system to move more material over a longer period with less downtime—which translates into lower cost per hour for you.

(1)Through-hardened 27MnTiB Boron Steels––for great strength,maximum wear life and superior breakage resistance

(2)Optional Systems to match the application and maximize your cost per hour

(3)Deep Countersinks for long-lasting bolt protection, ensuring a tight fit for your GET

(4)Edges in Sections for easy handling, storage, installation and turning

(5)Honest Warranty guaranteed against breakage in normal operation

Parts List Of Honest Cutting Edge

No.	PART NUMBER	DESCRIPTION	DIMENSION(MM)	WEIGHT(KG)
1	100-6666	CUTTING EDGE	30293359	23.4
2	100-6668	CUTTING EDGE	303601399.5	104.7
3	101-9435	CUTTING EDGE	38346482	47.5
4	101-9436	CUTTING EDGE	38354482	50
5	101-9437	CUTTING EDGE	38354482	50
6	107-3474	CUTTING EDGE	45254910	75.65
7	107-3476	CUTTING EDGE	452541532	128.8
8	107-3477	CUTTING EDGE	452541520	127.74
9	107-3479	CUTTING EDGE	452541034	86.81
10	107-3483	CUTTING EDGE	452541095	92.12
11	107-3490	CUTTING EDGE	45312482	50
12	122-9227	CUTTING EDGE	25254894	42
13	11G-71-31170	CUTTING EDGE	16160380	7
14	12F-70-31251	CUTTING EDGE	16160762	14.1
15	12F-70-31261	CUTTING EDGE	16160914	16.9
16	12F-70-31281	CUTTING EDGE	161601219.2	22.5
17	12Y-72-11210	CUTTING EDGE	16152380	6.3
18	12Y-72-11220	CUTTING EDGE	19203762	21.54
19	13F-Z27-1510	CUTTING EDGE	192031430	40
20	130-70-41130	CUTTING EDGE	192031350	38.2
21	130-70-61170	CUTTING EDGE	192031535	43.4
22	130-920-2180	CUTTING EDGE	192031199	33.5
23	130-Z20-1510	CUTTING EDGE	192031255	36
24	132-1035	CUTTING EDGE	35225280	15
25	132-1037	CUTTING EDGE	35265280	17.5
26	132-4715	CUTTING EDGE	35278305	16.5
27	134-72-61410	CUTTING EDGE	192031350	37.6
28	134-72-61420	CUTTING EDGE	192031255	35
29	135-6537	CUTTING EDGE	252801108	58.4
30	135-9294	CUTTING EDGE	40300330	30.8
31	135-9295	CUTTING EDGE	40315330	32.3
32	135-9296	CUTTING EDGE	40315330	32.3
33	135-9647	CUTTING EDGE	30265360	18.8
34	135-9648	CUTTING EDGE	30210360	14.9
35	135-9649	CUTTING EDGE	30265360	18.8
36	139-9230	CUTTING EDGE	303601280	101.5
37	140-0983	CUTTING EDGE	16203914	21
38	140-2187	CUTTING EDGE	161651008	18.5
39	140-6870	CUTTING EDGE	35293360	25
40	140-7601	CUTTING EDGE	40360292	28.8
41	140-80-00001	CUTTING EDGE	19203730	20.4
42	140-80-00006	CUTTING EDGE	19203773	30
43	144-70-11131	CUTTING EDGE	192031660	47
44	144-871-5130	CUTTING EDGE	202541594	57.4
45	144-920-1120	CUTTING EDGE	192031382	40
46	14X-71-11310	CUTTING EDGE	192031383	40
47	154-70-11313	CUTTING EDGE	252541156	54.5
48	154-71-43190	CUTTING EDGE	25254850	39.2
49	154-72-11151	CUTTING EDGE	25254910	44
50	154-81-11190	CUTTING EDGE	25254838	39.5
51	154-81-11191	CUTTING EDGE	25254838	39.5
52	156-82-00001	CUTTING EDGE	25254844	40
53	171-82-00001	CUTTING EDGE	25254330	13.6
54	171-82-00002	CUTTING EDGE	25254804	38.1
55	171-82-00003	CUTTING EDGE	25254330	13.6
56	175-70-21115	CUTTING EDGE	252541397	66
57	175-70-26310	CUTTING EDGE	252541062	50
58	17A-71-11351	CUTTING EDGE	35330764	63
59	17A-71-11351	CUTTING EDGE	30330764	54
60	17A-71-11654	CUTTING EDGE	32330761	54
61	17A-71-45210	CUTTING EDGE	323301064	82.5
62	17M-71-21550	CUTTING EDGE	303301090	77.6
63		CUTTING EDGE	353301090	90.5
64		CUTTING EDGE	383301091	98.3
65	17M-72-21160	CUTTING EDGE	30330781	55.5
66	195-70-12492	CUTTING EDGE	303301327	100
67	195-71-51651	CUTTING EDGE	303301064	77.6
68	195-71-11654	CUTTING EDGE	303301064	77.6
69	195-71-11654	CUTTING EDGE	353301064	90.5
70	195-71-51661	CUTTING EDGE	30330710	61
71	195-71-51671	CUTTING EDGE	303301331	99.18
72	195-71-61550	CUTTING EDGE	40406887	108
73	198-71-11181	CUTTING EDGE	404061192	145.1
74	198-71-21830	CUTTING EDGE	404061190	146.63
75	198-71-31540	CUTTING EDGE	45406861	108
76	198-71-31550	CUTTING EDGE	454061192	157
77	198-72-11181	CUTTING EDGE	40406862	102.2
78	417-815-1210	CUTTING EDGE	252541361	64.9
79	417-815-1220	CUTTING EDGE	25254535.5	25.6
80	418-815-1211	CUTTING EDGE	303301497	110
81	418-815-1221	CUTTING EDGE	30330592.2	43.2
82	419-904-1121	CUTTING EDGE	252541255.8	58
83	41E-70-15221	CUTTING EDGE	252541368	65.1
84	421-70-12122	CUTTING EDGE	352253050	185
85	421-70-12430	CUTTING EDGE	352253170	192.1
86	421-815-1121	CUTTING EDGE	35330546	46.5
87	421-815-1221	CUTTING EDGE	35330592	50.4
88	421-815-2110	CUTTING EDGE	353302070	177
89	421-815-2211	CUTTING EDGE	303301382	118.2
90	421-815-2220	CUTTING EDGE	30196445	22.6
91	421-825-3210	CUTTING EDGE	353301302	111.2
92	421-825-3220	CUTTING EDGE	35278455	32.77
93	421-838-1110	CUTTING EDGE	30215330	16.5
94	421-838-1120	CUTTING EDGE	30180330	14
95	423-815-1111	CUTTING EDGE	353301617	142.86
96	423-815-2210	CUTTING EDGE	303301249	107
97	423-904-1131	CUTTING EDGE	252541217.6	56.8
98	424-70-H2D80	CUTTING EDGE	30330650	45.5
99	424-815-1211	CUTTING EDGE	353301860	156.5
100	424-815-1211	CUTTING EDGE	303301861	136
101	1U0292	CUTTING EDGE	252801162	56.4
102	1U0295	CUTTING EDGE	252801025	49.4
103	1U0593	CUTTING EDGE	303601319	100
104	1U0601	CUTTING EDGE	303601210	96
105	1U0761	CUTTING EDGE	40556265	43
106	1U0762	CUTTING EDGE	354061406	148.6
107	1U1192	CUTTING EDGE	19254913	31.8
108	1U1464	CUTTING EDGE	C/EDGE 25280819	39.4
109	1U1465	CUTTING EDGE	C/EDGE 25280788	37.8
110	1U1909	CUTTING EDGE	303601260	94.1
111	1U2211	CUTTING EDGE	192031396	39
112	1U2406	CUTTING EDGE	303601230.5	94.1
113	1U4930	CUTTING EDGE	35254856	55.6
114	1U4931	CUTTING EDGE	322541095	65.5
115	3G4282	CUTTING EDGE	192031152	32.2
116	3G4285	CUTTING EDGE	19203425	12
117	3G6395	CUTTING EDGE	35200510	25.6
118	3G9306	CUTTING EDGE	16203884	22
119	3G9512	CUTTING EDGE	30170496	21.1
120	4T0608	CUTTING EDGE	50406783	116.26
121	4T0609	CUTTING EDGE	504061064	157.02
122	4T2315	CUTTING EDGE	192031558	43.5
123	4T2887	CUTTING EDGE	224061530	96.5
124	4T2895	CUTTING EDGE	304061528.6	131
125	4T2916	CUTTING EDGE	19254818	28.52
126	4T2917	CUTTING EDGE	192541355.7	47
127	4T2921	CUTTING EDGE	192541063	36.99
128	4T2922	CUTTING EDGE	19254758	26.38
129	4T2923	CUTTING EDGE	192541029	35.78
130	4T2945	CUTTING EDGE	19254708	25
131	4T2946	CUTTING EDGE	192541112	40
132	4T2948	CUTTING EDGE	192541063	38
133	4T2949	CUTTING EDGE	192541520	53
134	4T2950	CUTTING EDGE	192541561	54.86
135	4T2952/5J6839	CUTTING EDGE	19254802	28.2
136	4T2972/8J4666	CUTTING EDGE	16203673	15.8
137	4T2973	CUTTING EDGE	16203860	20.2
138	4T2974	CUTTING EDGE	16203808	18.6
139	4T2977	CUTTING EDGE	162031826	41.6
140	4T2978	CUTTING EDGE	162032434	56
141	4T2981	CUTTING EDGE	162032334	53.14
142	4T2982	CUTTING EDGE	16203990	23
143	4T2983/8J4665	CUTTING EDGE	16203383	9
144	4T2985	CUTTING EDGE	25254802	37.7
145	4T2986	CUTTING EDGE	25254778	36.6
146	4T2987	CUTTING EDGE	25254924	42
147	4T2988/8J8118	CUTTING EDGE	252541034	47
148	4T2989/5J6849	CUTTING EDGE	252541063	50
149	4T2992	CUTTING EDGE	25254758	35.6
150	4T2993	CUTTING EDGE	252541063	49.25
151	4T2994	CUTTING EDGE	252541215	57.1
152	4T3004	CUTTING EDGE	192031440	40.8
153	4T3007	CUTTING EDGE	192031828	51
154	4T3008	CUTTING EDGE	192031164	32.3
155	4T3009/6J1406	CUTTING EDGE	192031521	43
156	4T3010	CUTTING EDGE	19203657	18.5
157	4T3011	CUTTING EDGE	192031619	45.2
158	4T3012	CUTTING EDGE	192031497	42
159	4T3013	CUTTING EDGE	192031010	28.2
160	4T3014	CUTTING EDGE	192032231	62.3
161	4T3015	CUTTING EDGE	30256360	18.6
162	4T3020	CUTTING EDGE	19203860	23.82
163	4T3024	CUTTING EDGE	192032818	78.15
164	4T3025	CUTTING EDGE	192031113	31.5
165	4T3026	CUTTING EDGE	19203554.2	15.5
166	4T3027	CUTTING EDGE	19203383	11
167	4T3028	CUTTING EDGE	19203674	19
168	4T3030	CUTTING EDGE	192031215	34.2
169	4T3032	CUTTING EDGE	192032133	60
170	4T3037	CUTTING EDGE	192032438.4	67.8
171	4T3043	CUTTING EDGE	19203290	8.4
172	4T3044	CUTTING EDGE	19203290	8.4
173	4T3417	CUTTING EDGE	25254810	37
174	4T3418	CUTTING EDGE	252541534	70
175	4T3420	CUTTING EDGE	25254818	37.2
176	4T3421	CUTTING EDGE	252541357	61.5
177	4T3422	CUTTING EDGE	252541095	50
178	4T3423	CUTTING EDGE	25254856	39
179	4T3444	CUTTING EDGE	304061580	135.5
180	4T3720	CUTTING EDGE	192032133	20
181	4T3901	CUTTING EDGE	192541095	38.14
182	4T5318	CUTTING EDGE	19254894	31.5
183	4T6229	CUTTING EDGE	16165330.2	6.5
184	4T6230	CUTTING EDGE	16165863.6	16
185	4T6231	CUTTING EDGE	161601062	22
186	4T6232	CUTTING EDGE	161601213	25
187	4T6241	CUTTING EDGE	25254409	18.7
188	4T6242	CUTTING EDGE	25254409	18.7
189	4T6262	CUTTING EDGE	192031019	28.8
190	4T6378	CUTTING EDGE	30330900	65
191	4T6380	CUTTING EDGE	30330747.6	59
192	4T6381	CUTTING EDGE	303301354	97.6
193	4T6385	CUTTING EDGE	303301220	86.5
194	4T6386	CUTTING EDGE	303301040	75.7
195	4T6387	CUTTING EDGE	303301367	94
196	4T6388	CUTTING EDGE	303301062	76.54
197	4T6448	CUTTING EDGE	303051520	93.9
198	4T6508	CUTTING EDGE	252542133.6	102
199	4T6509	CUTTING EDGE	252542534	116
200	4T6514	CUTTING EDGE	252541558	71.4
201	4T6515	CUTTING EDGE	252541773	83.3
202	4T6531	CUTTING EDGE	252541520	69
203	4T6532	CUTTING EDGE	25254910	44.5
204	4T6568	CUTTING EDGE	254061429	90.3
205	4T6592	CUTTING EDGE	35406858	92
206	4T6594	CUTTING EDGE	354061542	164.1
207	4T6611	CUTTING EDGE	203301100	52.4
208	4T6612	CUTTING EDGE	25330748	44.3
209	4T6613	CUTTING EDGE	25330560	33
210	4T6614	CUTTING EDGE	25330900	53
211	4T6448	CUTTING EDGE	303051520	99
212	4T6659	CUTTING EDGE	192031052	29.4
213	4T6691	CUTTING EDGE	25175280	8.2
214	4T6692	CUTTING EDGE	25195280	9.1
215	4T-6693,132-1036	CUTTING EDGE	25210280	9.8
216	4T6694	CUTTING EDGE	25225280	11
217	4T6695	CUTTING EDGE	25265280	12.5
218	4T6696	CUTTING EDGE	30190360	13.6
219	4T6697	CUTTING EDGE	30210360	15
220	4T6698	CUTTING EDGE	30240360	17
221	4T6699	CUTTING EDGE	30270360	19.7
222	4T6700	CUTTING EDGE	30290360	21.5
223	4T6760	CUTTING EDGE	40410590	69
224	4T6761	CUTTING EDGE	40451590	76
225	4T6762	CUTTING EDGE	40451591	76
226	4T8077	CUTTING EDGE	162032382	54.75
227	4T8091	CUTTING EDGE	25160342	10
228	4T8101	CUTTING EDGE	30170496	19
229	4T8317	CUTTING EDGE	352542438	160.4
230	4T8796	CUTTING EDGE	192541238	43.4
231	4T8799	CUTTING EDGE	25254998.4	45.4
232	4T8940	CUTTING EDGE	162031193.8	27.33
233	4T9123	CUTTING EDGE	30360265	19.4
234	4T9124	CUTTING EDGE	30360265	19.4
235	4T9586	CUTTING EDGE	303301695	122.2
236	4T9587/6Y5540	CUTTING EDGE	30330802	56.7
237	4T9836	CUTTING EDGE	353301695	144
238	5G2809	CUTTING EDGE	192002080	57.8
239	5G3085	CUTTING EDGE	201902150	62.5
240	5J6803	CUTTING EDGE	303051520	93.9
241	5J6832	CUTTING EDGE	25254910	43.3
242	5J6839	CUTTING EDGE	19254802	28.2
243	5J6849	CUTTING EDGE	252541063	50
244	5J6888	CUTTING EDGE	192541063	38.2
245	5J6888	CUTTING EDGE	252541063	49.3
246	5V4661	CUTTING EDGE	252452408	106
247	5V4696	CUTTING EDGE	322822736	174
248	5V7276	CUTTING EDGE	252452616	123.3
249	5V7410	CUTTING EDGE	252452471	121.2
250	5V7423	CUTTING EDGE	252452439	106.9
251	6J1406	CUTTING EDGE	192031521	42.5
252	6J7116	CUTTING EDGE	252541533	72.1
253	6W2985	CUTTING EDGE	252452639	114.3
254	6W2986	CUTTING EDGE	252452411	110.2
255	6W2987	CUTTING EDGE	252452615	113.2
256	6W2989	CUTTING EDGE	302822840	185
257	6W2990	CUTTING EDGE	302822856	175.1
258	6Y3840	CUTTING EDGE	252541225.6	58
259	6Y5538	CUTTING EDGE	303302264	158.9
260	6Y5539	CUTTING EDGE	303301787	130
261	6Y5540/4T9587	CUTTING EDGE	30330802	54.8
262	6Y5841	CUTTING EDGE	16165912	16.7
263	7I3015	CUTTING EDGE	403003194	289
264	7J2959	CUTTING EDGE	40330900	90
265	7J2980	CUTTING EDGE	403301040	110.9
266	7J3025	CUTTING EDGE	25330900	47
267	7T3494	CUTTING EDGE	252032133	81.5
268	7T3495	CUTTING EDGE	252032438.4	91.6
269	7T5701	CUTTING EDGE	353302265	192
270	7T5702	CUTTING EDGE	353301787.4	151.51
271	7T6589	CUTTING EDGE	252801095	58.3
272	7T6592	CUTTING EDGE	25280567	26.87
273	7T6678	CUTTING EDGE	25280894	47.6
274	7T6936	CUTTING EDGE	25280908	43.12
275	7T9125	CUTTING EDGE	35330803	68.2
276	7T9125	CUTTING EDGE	30330803	58.5
277	7T9126	CUTTING EDGE	353301353.2	115
278	7T9976	CUTTING EDGE	252031053	40
279	7T9977	CUTTING EDGE	252031019	38.3
280	7T9978	CUTTING EDGE	25203658	24.8
281	7V0904	CUTTING EDGE	302852855	173.4
282	7V1490	CUTTING EDGE	403003033	268.5
283	7V6844	CUTTING EDGE	403002914	260.2
284	8294271	CUTTING EDGE	19203912	26.1
285	8E2085	CUTTING EDGE	60406992	180
286	8E2086	CUTTING EDGE	60406859	155.5
287	8E2087	CUTTING EDGE	60406848	153.5
288	8E4567	CUTTING EDGE	252801102	53.2
289	8E4569	CUTTING EDGE	25247280	11.6
290	8E9377	CUTTING EDGE	162031054	24.13
291	8J1489	CUTTING EDGE	19203808	22.3
292	8J1489	CUTTING EDGE	16203808	18.8
293	8J1490	CUTTING EDGE	19203860	24
294	8J1490	CUTTING EDGE	16203860	20
295	8J7738	CUTTING EDGE	192032335	66.1
296	8J8118	CUTTING EDGE	252541034	48.4
297	8J9668	CUTTING EDGE	252541215	56.2
298	8K5056	CUTTING EDGE	453053270	328
299	8K8161	CUTTING EDGE	252452438	121
300	8K8162	CUTTING EDGE	252452682	133.1
301	8K9754	CUTTING EDGE	322672921	181.3
302	9K1619	CUTTING EDGE	453053270	345
303	9J4369	CUTTING EDGE	354061580	162
304	9J5899	CUTTING EDGE	404061580	190.8
305	9R4672	CUTTING EDGE	201502262	51
306	9R5313	CUTTING EDGE	201502406	58
307	9U8057	CUTTING EDGE	19203627	17.5
308	9V0169	CUTTING EDGE	356072870	364
309	9V0170	CUTTING EDGE	405803085	437
310	9V6572	CUTTING EDGE	252502370	102.5
311	9V6573	CUTTING EDGE	302822735	158
312	9V6574	CUTTING EDGE	453053314	361
313	9V6575	CUTTING EDGE	252502370	248.5
314	9W1375	CUTTING EDGE	354061524	161.5
315	9W1878	CUTTING EDGE	192541227.3	43.18
316	9W3927	CUTTING EDGE	45330800	88.5
317	9W4396	CUTTING EDGE	353301695	143.75
318	9W4397	CUTTING EDGE	353302164	184
319	9W4398	CUTTING EDGE	35330800	68
320	9W4493	CUTTING EDGE	604061024	182.3
321	9W4494	CUTTING EDGE	604061020	182
322	9W4495	CUTTING EDGE	604061098	192.9
323	9W4500	CUTTING EDGE	353301040	88.5
324	9W4502	CUTTING EDGE	353301223	104
325	9W4507	CUTTING EDGE	403301354	135.18
326	9W4508	CUTTING EDGE	403301223	131.4
327	9W4902	CUTTING EDGE	35406908	92.9
328	9W5232	CUTTING EDGE	30330825	60
329	9W5432	CUTTING EDGE	303301241	90
330	9W5730	CUTTING EDGE	35323482	41
331	9W5734	CUTTING EDGE	35312483	40
332	9W5737	CUTTING EDGE	35323483	41
333	9W6092	CUTTING EDGE	35330900	76.5
334	9W6608	CUTTING EDGE	35406859	90
335	9W6609	CUTTING EDGE	35406992	103
336	9W6615	CUTTING EDGE	35406851	88.45
337	9W6656	CUTTING EDGE	45406995	134
338	9W6657	CUTTING EDGE	45402859	116
339	9W6658	CUTTING EDGE	45406851	116
340	9W6747	CUTTING EDGE	35323482	25.2
341	9W7043	CUTTING EDGE	453301787	196.5
342	9W7044	CUTTING EDGE	453302265	249
343	9W8215	CUTTING EDGE	192031130	31.8
344	9W9098	CUTTING EDGE	353301240	105.2
345	9W9702	CUTTING EDGE	45406908	120.4
346	9W9796	CUTTING EDGE	252801063	51
