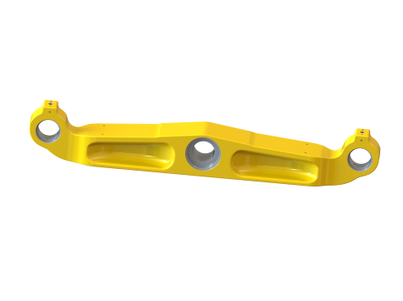

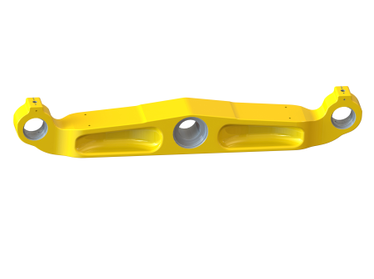

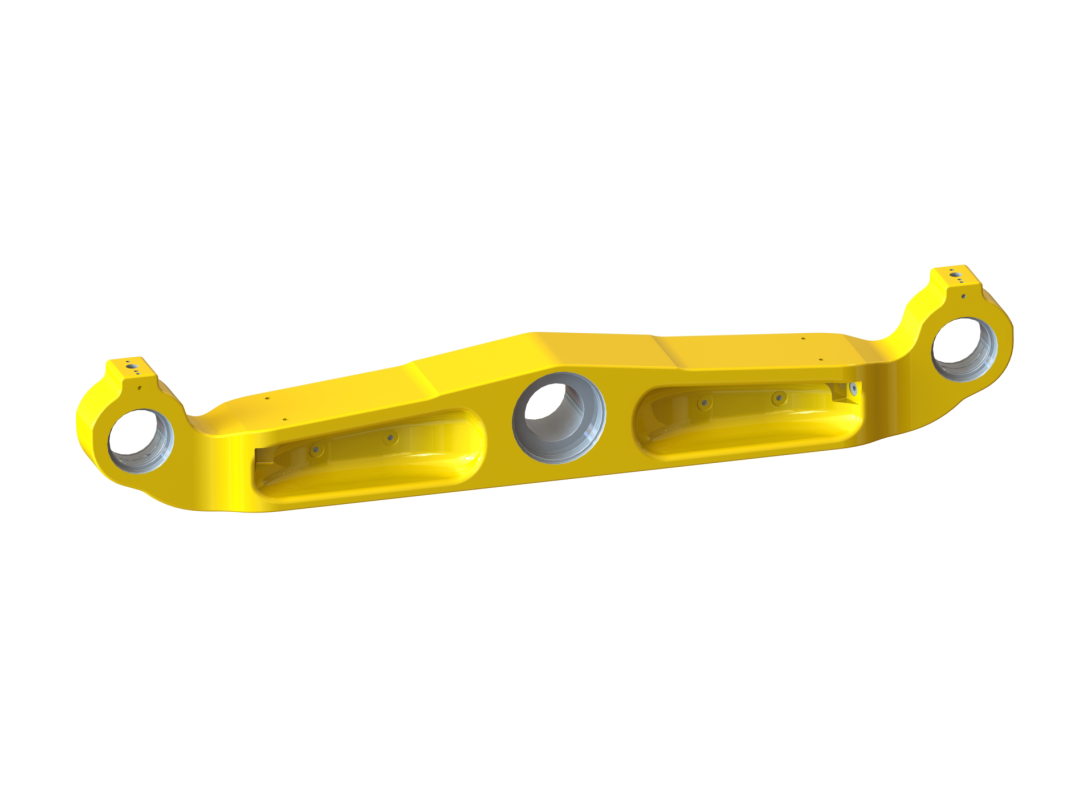

D9R Bulldozer Equalzier Bar 140-9699

We could also supply the equalizer bar connect parts. Below are the list of the 140-9699 equalizer bar connect parts we could supply.

Brief Introduction Of Honest Equalizer Bar

The equalzier bar also known as the suspension equalizer, is a critical component in the undercarriage system of bulldozers. The equalizer bar was designed to enhance stability, weight distribution, and maneuverability, it plays vital role in ensuring optimal performance on uneven or challenging terrains.

The primary fuction of the equalizer bar is to balance the load between the front and rear tracks of the bulldozer. When operating on the rough surfaces, the machine's tracks may encounter uneven pressure due to obstacles or slopes. The equalizer bar acts as a pivot, allowing the tracks to articulate independently while maintaing a connection to the chassis. This articulation helps distribute the machines's weight more evently across both tracks, reducing strain on individual components and improving traction.

(1)Our Equalzier Bar was one-piece forged without any welding.

(2)After heat treatment, so our equalizer bar have very good toughnees and High resilience to prevent breakage.

(3)All the equalizer bar have a 2 years warranty.

Parts List of Honest Equalizer Bar
